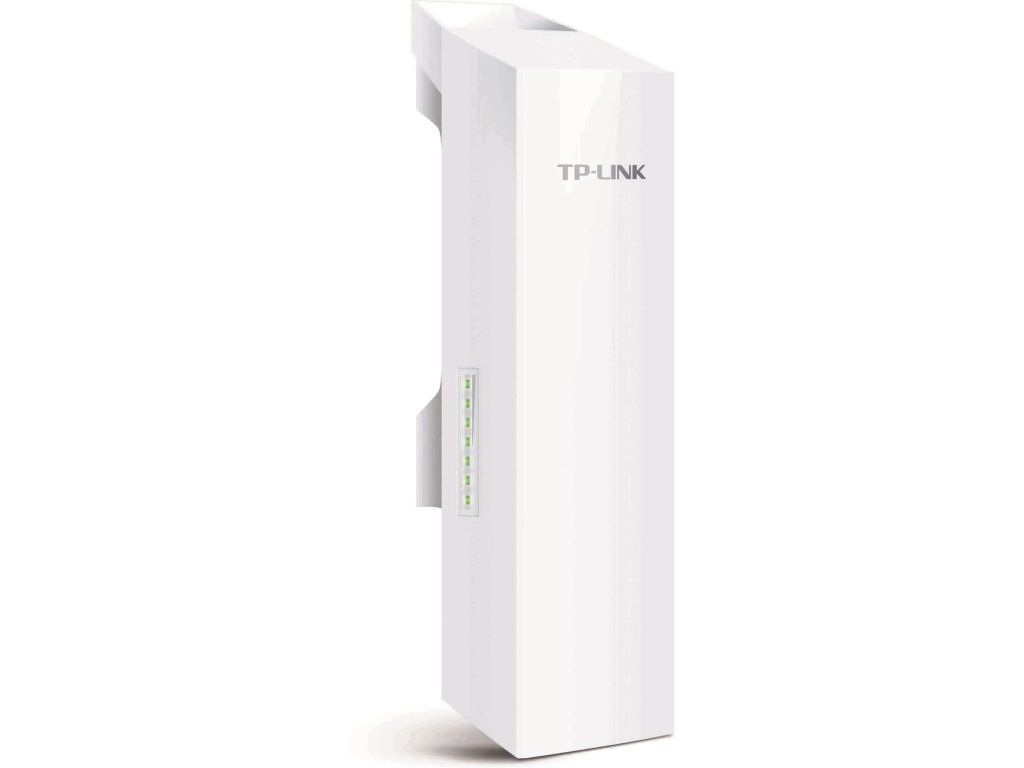

TP-LINK CPE210

Podrobný popis

TP-Link CPE210 Outdoor 2,4GHz 300Mbps OVERVIEW * Built-in 9dBi 2x2 dual-polarized directional MIMO antenna * Adjustable transmission power z 0 to 27dBm/500mw * TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technológie improves produkt performance in throughput, capacity and latency performance, ideal for PTMP applications * Centralized Management System - Pharos Control * AP / Client / Repeater / AP Router / AP Adaptér podporuje až 60 metrov (200 metrov) Power over Ethernet deployment a umožňuje zariadenie obnoviť remotely Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button Dimensions (WXDXH) * 224 x 79 x 60 mm Antenna Type * Built-in 9dBi 2x2 Dual-polarized Directional Antenna * Beam Width: (E-Plane) * Poznámka: Pre viac podrobností, prosím refer to datasheet Protection * 15KV ESD Protection * 6000V Lightning Protection Power Consumption * 10.5 Watts Max length of the connecting cable. Power Supply * Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) * Voltage range: 16-27VDC Enclosure * Outdoor ASA stabilizovaný plastový materiál * IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards * IEEE 8 MAXtream disabled) Proprietary Protocol * TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds * Up to 300Mbps (40MHz, Dynamic) * Up to 144.4Mbps (20MHz, Dynamic) * Up to 72.2Mbps (10Mbps, 10MHz, Dynamic) Frequency * 2.4~2.483GHz * Poznámka: Available operating frequency má vary depending on limitations of countries or regions in which the device is used. Receptión Sensitivity * 802.11b: - 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm * 802.11g: - 54M: -79dBm, 48M: -80dBm, -80dBm, -86dBm 6-24M: -88dBm * 802.11n: - MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, - MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, - MCS10: -91dBm, - -96dBm, MCS7: -76dBm, - MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, - MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm Transmission power by 1dBm) * Poznámka: Maximum transmission power má vary prostredníctvom rôznych kanálov, ktoré sú viazané na limity krajín alebo regiónov v ktorých sa device používa. SOFTWARE FEATURES Wireless Configurations * Pharos MAXtream TDMA Technology * 802.11b/g/n Modes * Selectable Channel Width: 5/10/20/40MHz * Automatic Channel Selection * Transmission Power Control * Dynamic Frequency Selection (DFS) * WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption * SSID Broadcast Enable/Disable * Multi-SSID s VLAN Tagging (AP mode only) * Distance/ACK Timeout Setting * Wireless MAC Address Threshold/Fragmentation * >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management * Discovery a Remote Management via Pharos Control application * HTTP/HTTPS Web-based management * System Log * SNMP Agent Indicators: * Signal Strength/Noise/Transmit CCQ/CPU/Memory * Monitory: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP * Spectrum Analyzer * Speed ​​Test * Ping * Traceroute OTHERS Certification * CE, FCC, RoHS, IPX5 Package Contents * Outdoor Wireless CPE * 24V 1A Passive PoE Adapter * Pole Mounting Straps * AC Power Cord * Instalácia Guide System Requirements * Microsoft Windows 98SE, NT, 2000, XP, Vista UNIX or Linux. * Poznámka: Máme možnosť použiť jeden z nasledujúcich webových prehliadačov pre bezproblémové používateľské skúsenosti: Google Chrome, Safari, a Firefox. IE browsers are not recommended. Environment * Operačné Temperature: -30°C~70°C * Storage Temperature: -40°C~70°C * Operating Humidity: 10% ~ 90% non-condensing * Storage Humidity: 5% ~ 95% non-condensing Button Dimensions (W x D x H) * 110 * 57 * 33.5mm Efficiency * >80% Input * 100-240VAC, 50/60Hz Input Current * 0.8A 100VA~240VAC @ 50Hz~60Hz Interfaces * 1 AC Jack with Earth Ground * 1 10/100Mbps Shielded Ethernet Port (Power + Data) * 1 10/100Mbps Shielded Ethernet Port (Data) Output * 24VDC, 1; -7, 8pins. (Support up to 60m Power over Ethernet) Output Voltage * 24VDC(+4,5pins; -7,8pins) Power Status LEDs * 0~0.8A: Green * 0.8A~1.0A: Red
