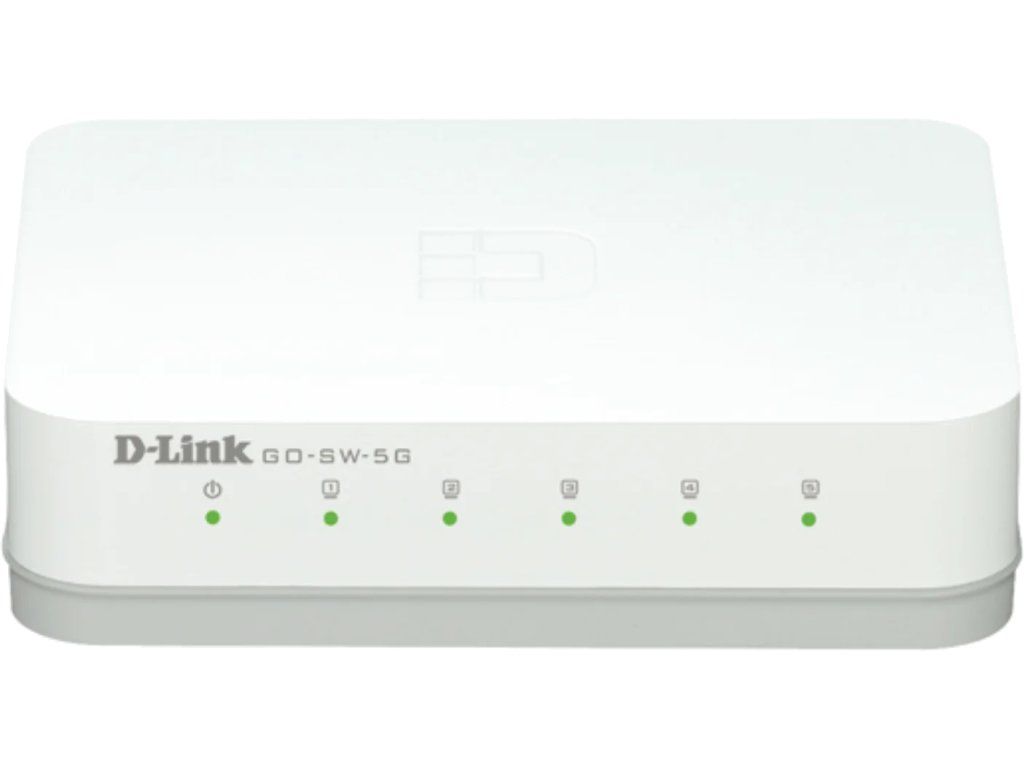

D-Link GO-SW-5G

Podrobný popis

D-Link GO-SW-5G 5-Port Gigabit Easy Desktop Switch OVERVIEW 5-Port Gigabit Easy Desktop Switch (GO-SW-5G) offers ekonomický spôsob pre SOHO a malý na medium podnikania benefitu z rozšírenej Bandwidth Gi. It provides Gigabit porty pre easy expansion vašej siete a rýchlou cestou k upgrade vašej siete k Gigabit connectivity. SPECIFICATIONS Switching Fabric • 10Gbps štandardy • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802. (twistedpair copper) • ANSI / IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control • IEEE 802.3az Fast Ethernet: • 100 Mbps (half duplex), 200 Mbps (full duplex) • Gigabit Ethernet: • 2000 Mbps (full duplex) Topológy • Star Network Cables • 10BASE-T: STP (max. 100 m) • 100BASE-TX, 1000BASE-T: • UTP CAT 5/5e (max. 100 m) • EIA/TIA-568 100-ohm STP (max. 100 m) Link/Activity/Speed ​​• Per device: Power Transmission Method • Store-and-forward MAC Address Table • 2K MAC Address Learning • Automatic update Packet Filtering/Forwarding Rates 1,488,000 pps pre port RAM Buffer • 128 KB per device Jumbo Frames • 9,216 Bytes DC Input • External 5 V/1 A Level „V“ Power Adaptér Power Consumption Temperature • 0 až 40 °C Storage Temperature • -10 až 70 °C Operačná humidita • 10% až 90% RH non-condensing Storage Humidity • 5% to 90% RH non-condensing Dimensions • 97 x 79 x 28 mm Weight • 105 ICES-003 Class B • CE Class B • C-Tick Class B • VCCI Class B • cUL/UL • CCC • Anatel • LVD
