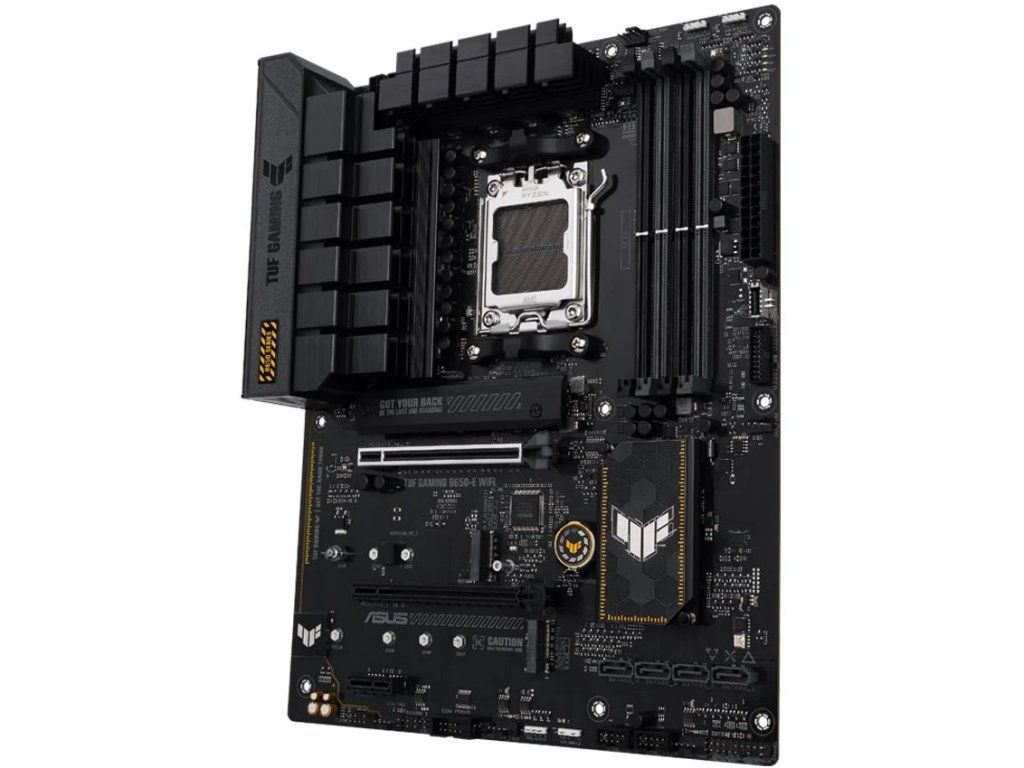

ASUS TUF Gaming B650-E WiFi

Podrobný popis

ASUS TUF GAMING B650-E WIFI využíva všetky základné prvky najnovšej pätice AM5 pre stolné procesory AMD Ryzen™ a kombinuje ich s funkciami pripravenými k hre a preukázanou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným systémom chladenia, prekonáva očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zabezpečilo, že zvládnu podmienky, kedy ostatní môžu zlyhať. Esteticky tento model zahŕňa robustné nečierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje rad TUF GAMING. CPU AM5 Socket pre Ryzen™ AMD Desktop Processors* * Referte na www.asus.com pre CPU support list. Chipset AMD B650 Chipset Memory 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/64 00(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC a non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), a number of DRAM moduly vary depending on a CPU. for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzén™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzén™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B. x16 slot (support x 1 mode) 1 x PCIe 4.0/3.0 x1 slot * Please check PCI bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - Ak chcete získať kompatibilitu zariadenia nainštalovanú, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals. Storage Total supports 3 x M.2 slotov a 4 x SATA 6Gb/s portov AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 2 supports both PCIe RAID 0/1/10 a SATA RAID 0/1/10. ** Specifications vary by CPU types. Ethernet + Wireless LAN 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) countries. ** The Bluetooth verzia má vary, prosím refer to na Wi-Fi module manufacturer's webová stránka pre najnovšie špecifickosti. USB Rear USB (Total 8 portov) 2 x USB 10 Gbps port(s) (1 x Type-A + 1 x USB Type-C®) 3 x USB 5 Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) Type-C®) 1 x USB 5 Gbps headset(s) support(s) 2 additional USB 5 Gbps ports 2 x USB 2.0 header(s) support(s) 4 aditional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover * Vďaka limitom HDA bandwidth, 32-Bit/192 kHz nie je podporovaný pre 7.1 Surround. ** Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output. Back Panel I/O Porty 2 x USB 10 Gbps port(s) (1 x Type-A + 1 x USB Type-C®) 3 x USB 5 Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Interné I/O konektory Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB USB 5Gbps portov 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 Panel 3 Chassis intrude function SpecialFeatures ASUS TUF PROTECTION - DIGI+ VRM (- Digital Power Design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Dizajn - M.2 Q-L DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 headsink - VRM headsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack ™ LED - ProCool - Pre-mounted I/O shield - Safe Addressable Gen 2 header(s) Softvér Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS x SATA 6 Gb/s káble Miscellaneous 1 x ASUS Wi-Fi moving antény 1 x Rubber Package(s) pre M.2 2 x Screw package(s) pre M.2 SSD 24.4 cm
